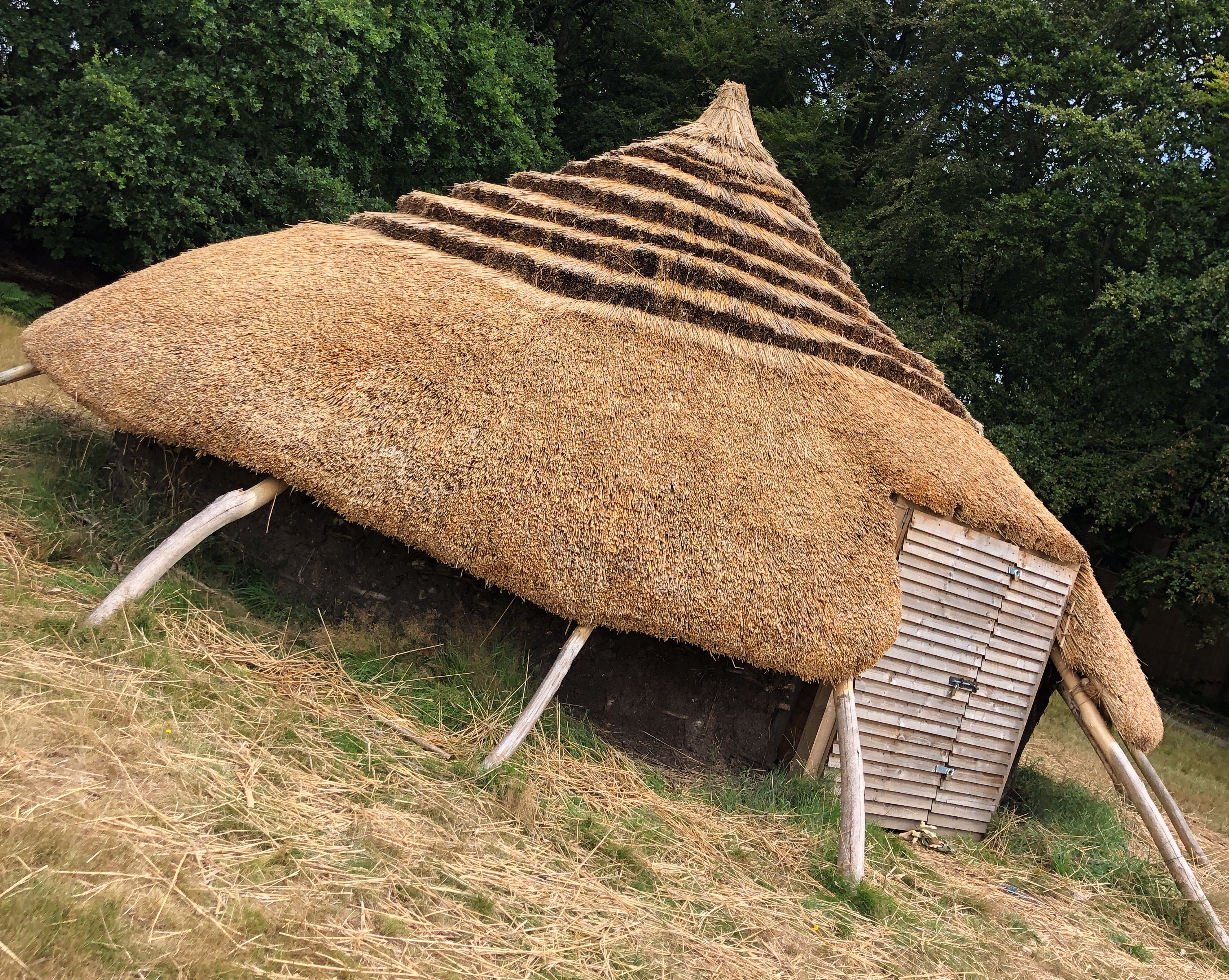

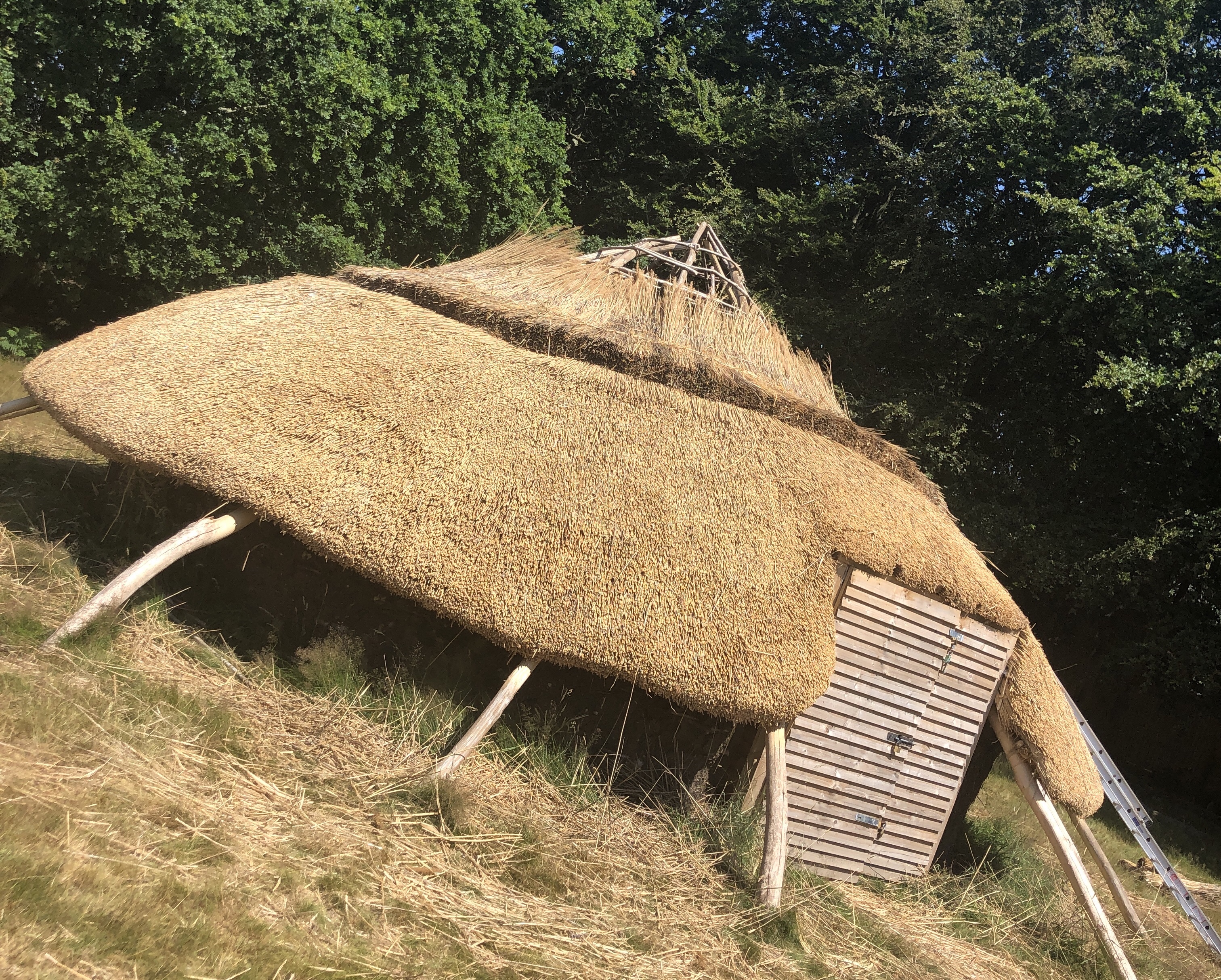

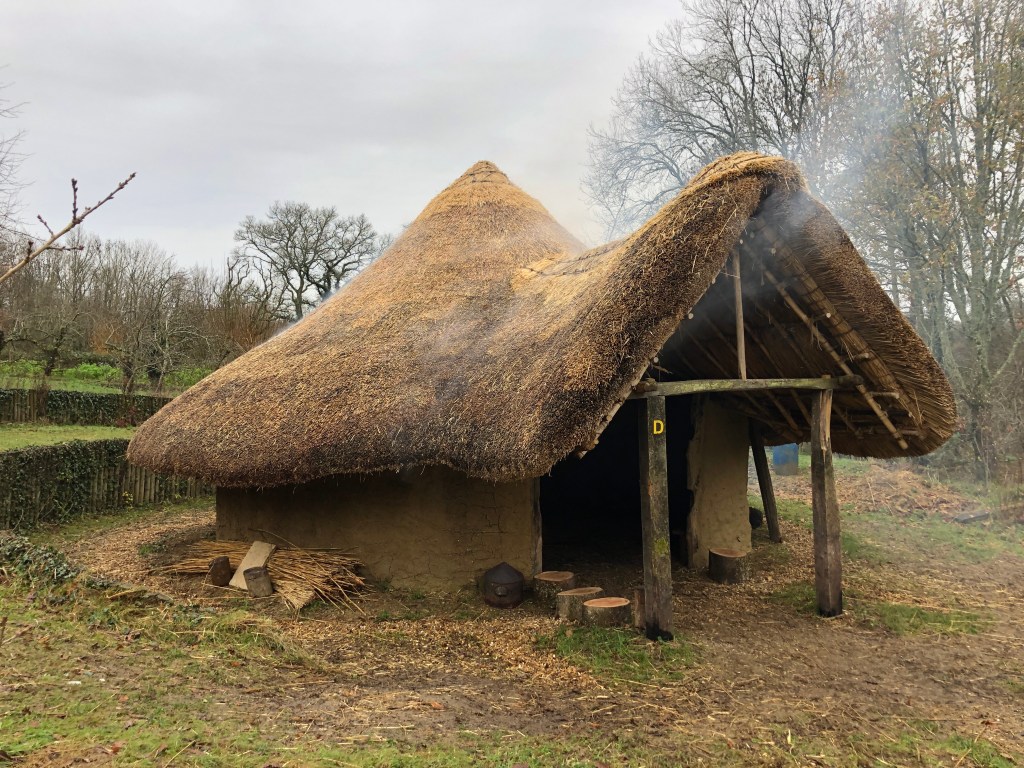

Sub-roman building vandalised

This is what the build at Upton country park looks like now! I have been commissioned to fix it but the work list is getting longer and longer, I can’t do it for a while because of my Daughters illness. Its so frustrating.

Advertisements

Shingle / Shake making

Ive been meaning to post this for a while, Learned to make radial split and bastard shingles back in 2008 when I was helping to build the viking longhouse at The Ancient technology centre in Cranborne. I made and attached over 5000 shingles to the roof, this may seem like a lot but there were well over 25000 shingles on that roof. I have since taught two members of the Dorset coppice group (David Ewers and John Sweeny) to make them for the Dark ages build at Upton country park. In theory we can now meet quite large orders if people would like them. £60/m2

This slideshow requires JavaScript.



P1000134



P1000135P1000136P1000137P1000138P1000139P1000140P1000142P1000143

Remove sap wood, this can also be done earlier in the process before splitting with cleave break.

P1000143aP1000149

when edge not straight or too thin this should be removed shingles we find a minimum width of 2 inches about right.

P1000150

P1000151if the source isn’t flat this can be removed either with the axe or a draw knife the axe works better and is faster, best to minimise this as cutting across the grain too much reduces longevity.

P1000152P1000155P1000156P1000162


Shingles are 40cm long and should overlap by two thirds to make up 1 meter squared we laid ours ours out on a meter square and then piled these shingles up like this 16 layers = 1 meter squared.

Good luck with your shingle / shake making.

If all goes well I will be at the Stock Gaylard woodfair next weekend demonstrating, come and see me at my stand.

Anthony

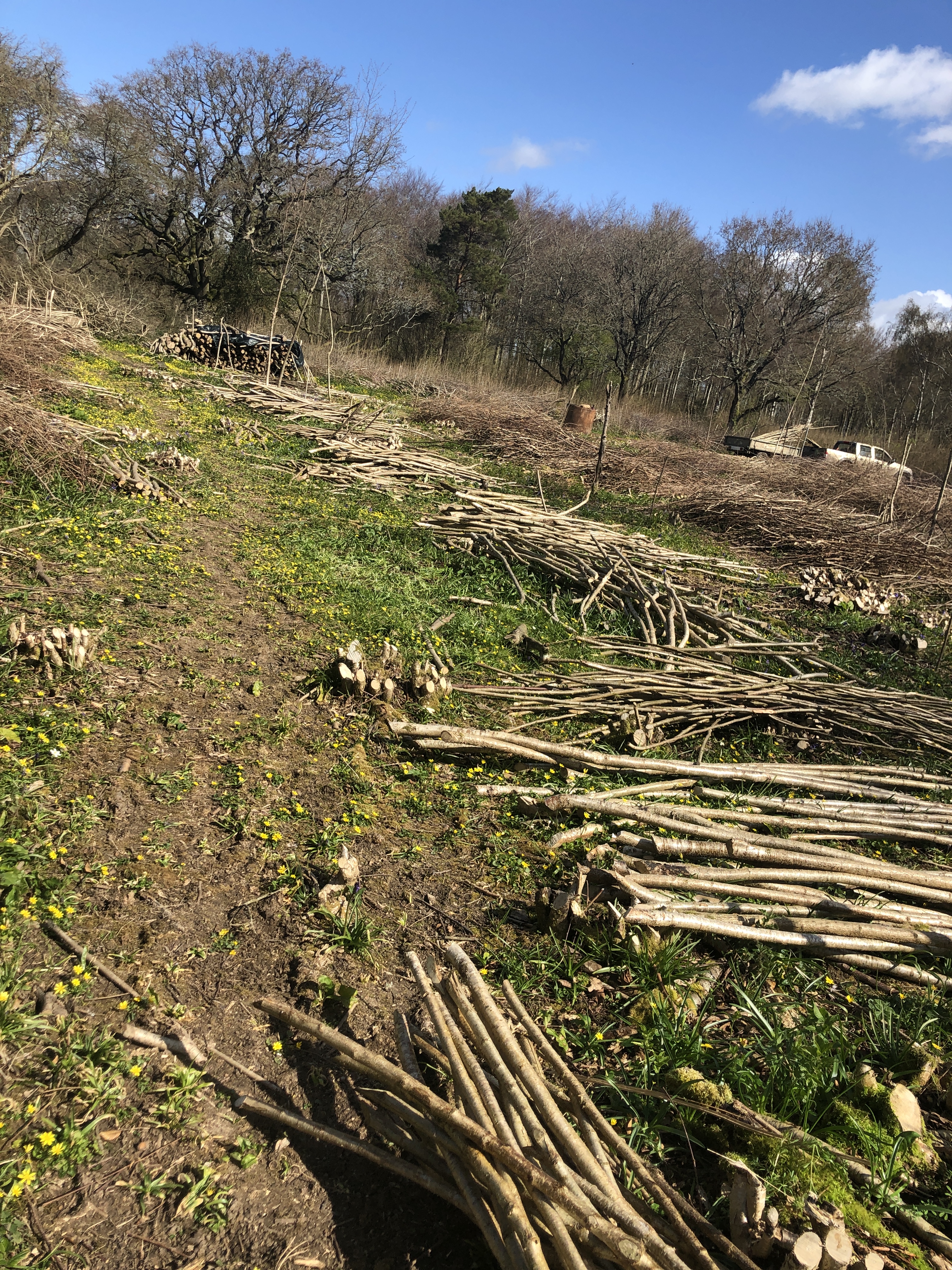

Coppicing some notes

Coppicing

Takes advantage of the habit of a broad leaf tree to regrow from the base when cut down during the dormant season either from suckers (elm, blackthorn, white poplar cherry and grey alder) or from the stem. In spring when sap rises the stump (stool, mock) sends up shoots, which are grown on for usually 1-12 years (hazel ash e.t.c) or 10-30 years in the case of chestnut.

History

  • Straight sticks from coppiced wood used throughout human history
  • Senegalese chimps use spears (selected sharp straight sticks) to hunt bush babies
  • Malle habit of tree regeneration in eucalyptus trees {Australia), coppiced by bushfire
  • Whip stick spears used by local tribes of hunter-gatherers.
  • Earliest definitive example of large-scale use of coppice material in UK Sweet track 3800 BC Somerset coppiced
  • Carried out on a casual basis until the division of woodland for coppice management from 11-13th century, recorded evidence 15th century.

Coppice management

  • Largely coppice and standard arrangement, i. stools 4-6ft apart with canopy of standard trees (Usually Oak and Ash), right balance between stools and standards important. Too many over shade stools giving poor quality rods.
  • Standards grown from maidens (central stems)
  • Cutting understory in rotation (cants, coupes), no less than 0.3 acres and no larger than 3acres.

Over stood coppice

Most coppice woodland is now over stood or of poor quality i.e.no longer cut on a regular rotation.

After 40years this will no longer be useable for coppice products only firewood and charcoal.

As stool density decreases the trees become susceptible to wind blow. Many animals and wildflowers depend on the rotational system. Degradation leads to a decrease in species diversity.

Uses

Conservation is the main reason for coppice management in the 21st century, but a variety of traditional products once and still could support a large rural workforce.

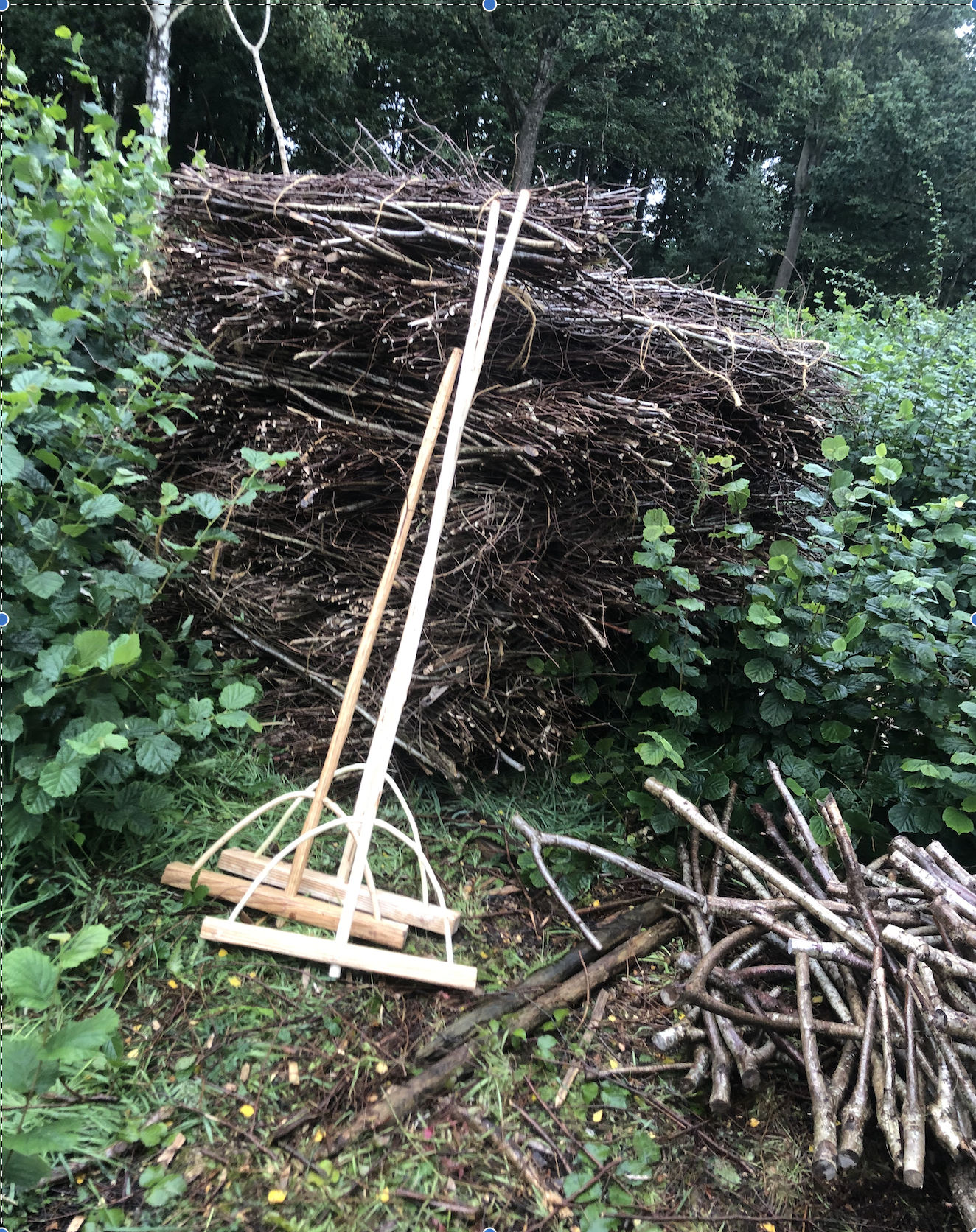

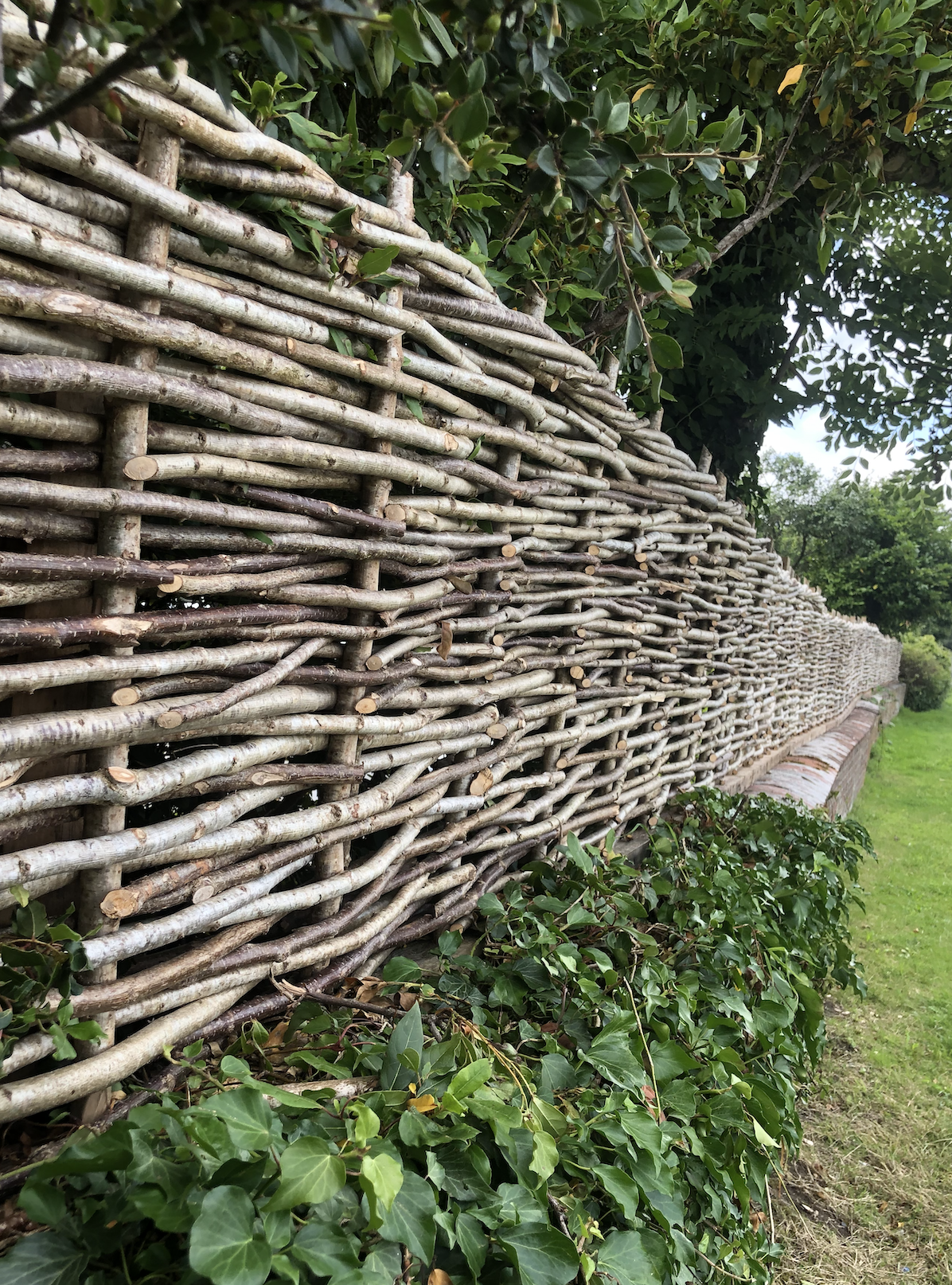

Charcoal, gate hurdles, hurdles, faggots, Stick furniture, walking sticks, pea sticks

Well-managed woodland can sustain more people per acre than any modem forestry technique.

How to promote recovery

  • Protect (fence area to prevent deer and rabbit damage)
  • Thinning (reduce number of standards)
  • Increase stool density through layering or stooling and replanting
  • Recut after three years
  • Leave to grow on for seven years



Methods for increasing number of stools

Layering

 Layering

Stooling

New rooted shoots can be cut below surface and replanted as whips.
